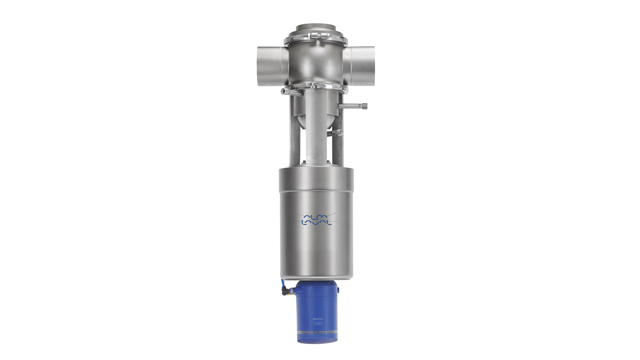

Unique Mixproof Tank Outlet
Same basic advantages as the unique mixproof valves but specially designed for mounting directly on the tank wall at the inlets and outlets. For tank inlet and outlet applications, the Unique mixproof tank outlet (TO) valve offers full drainability and provides cleanability all the way up to the tank without any risk of cross-contamination.
Cost effective tank outlet mixproof valve
Alfa Laval Unique Mixproof TO valves feature two independent plugs. It is the choice for hygienic installations enabling safe filling or emptying of tanks.
Exceptional spillage-free operation
A state-of-the-art double-seat design provides long-lasting, spillage-free operation thus minimizing the risk of product contamination. The use of double lip seals provides added protection to ensure safe and hygienic operation.
Easy valve to maintain and clean
Unique mixproof valves feature a top-loaded design, making maintenance fast and easy. It also features no adjustable components, a maintenance-friendly actuator and built-in leakage detection on all seals. Unique mixproof valves meet most hygienic standards and can be supplied with the optional SpiralClean cleaning system.
You get the full benefit of using Unique mixproof valves by combining them with Alfa Laval ThinkTop and ThinkTop Basic valve sensing and control units.
Valve clusters - customized flow solutions
We are specialists in providing pre-built valve clusters customized to meet specific, individual requirements.
Our expertise helps ensure you the most efficient flow management, using as few components as possible and dealing effectively with key issues that include thermal cycling, cleanability, drainability and flow control.
Alfa Laval valve clusters can be supplied pre-assembled and pre-tested as well as fully wired and with all the necessary pneumatic tubing, junction boxes and control panels pre-connected.
This means you can bring even complex installations online as quickly as possible, saving time and avoiding lost revenue associated with on-site troubleshooting and downtime.
For more information, please refer to Documentation and to the Selection Guide.
For cost-effective alternatives to the Unique mixproof valve range, Alfa Laval also offers standard SMP mixproof valves.
Product benefits
- Cost effective
- Safe and hygienic operation
- Easy to maintain and clean
Valve Matrix - an example of a valve matrix with five tanks
How it works
State-of-the-art horizontal mixproof valve
Based on the well proven and exceptionally versatile principle of the Unique Mixproof valves, this horizontal mixproof tank valve features many of the same components, such as the actuator, yoke and seals, and therefore the same spare parts. This provides the benefits of easy serviceability and low total cost of ownership.
Alfa Laval Unique Mixproof Horizontal Tank Valve, can be fitted with any level of sensing and control. It is as standard supplied with seat lift, which enables handling of two different products at the same time, or safe handling of one product while seat-lift cleaning operations are being conducted in the other portion of the valve – all without any risk of cross-contamination. The double tangential design of the valve body ensures full drainability, especially when the valve is mounted at the bottom of a flat-bottomed tank.
360° Service and maintenance videos
Alfa Laval Unique mixproof valves - replace product-wetted seals
Alfa Laval Unique mixproof valves - replace radial seal
Alfa Laval Unique mixproof valves - replace axial seal
Save water with ThinkTop
Do something good for the environment and save up to 95% in CIP liquid when cleaning your valves. Innovations like ThinkTop sensing and control units make more efficient use of resources while safeguarding process hygiene. Add ThinkTop to your valves to optimize your processes.
Part of a broad valve range
Alfa Laval offers a comprehensive range of valves intended for hygienic applications in the dairy, food, beverage,home care, personal care, biotechnology and pharmaceuticals.
- Alfa Laval Unique Mixproof Large Particle
- Alfa Laval Unique Mixproof Tank Outlet
- Alfa Laval Unique Mixproof Horizontal Tank
- Alfa Laval Unique Mixproof UltraPure
- Alfa Laval Unique Mixproof
For a broader valve range, explorer the different product categories: ball valves, butterfly valves, control/check valves, diaphragm valves, double seal valves, regulating valves, safety valves, sample valves, shutter valves and single seat valves.
