ThinkTop® V50
The compact Alfa Laval ThinkTop V50 and V70 are the second-generation of the leading sensing and control units for hygienic valves. It ensures unmatched control of all Alfa Laval valves used in the dairy, food, beverage, brewery and pharmaceutical industries.
Intuitive, intelligent hygienic valve control
- Fast, intuitive setup takes place in seconds
- Smart control with 24/7 self-diagnostics
- 360° LED visual status indication, visible from any direction
- Built-to-last waterproof design withstands vibration and thermal expansion
- Fastest ever burst seat cleaning reduces water consumption by up to 90%
Alfa Laval ThinkTop®. Rethought.
Intuitive & Fast |
Smart & Adaptable |
Durable & Reliable |
Aesthetic Design |
Easy-to-access digital service and support
Access the service instruction manual and videos online or get the direct support you need using a convenient QR code located on the Alfa Laval ThinkTop housing.
The V-series fits all Alfa Laval hygienic valves. Select the right Alfa Laval ThinkTop valve control unit for your hygienic process needs based on the number of solenoid valves required. The ThinkTop V50 series fit on top of the Alfa Laval DV-ST, butterfly, single seat, SMP-BC and UMP CIP valves.
Exploit the power of IO-Link

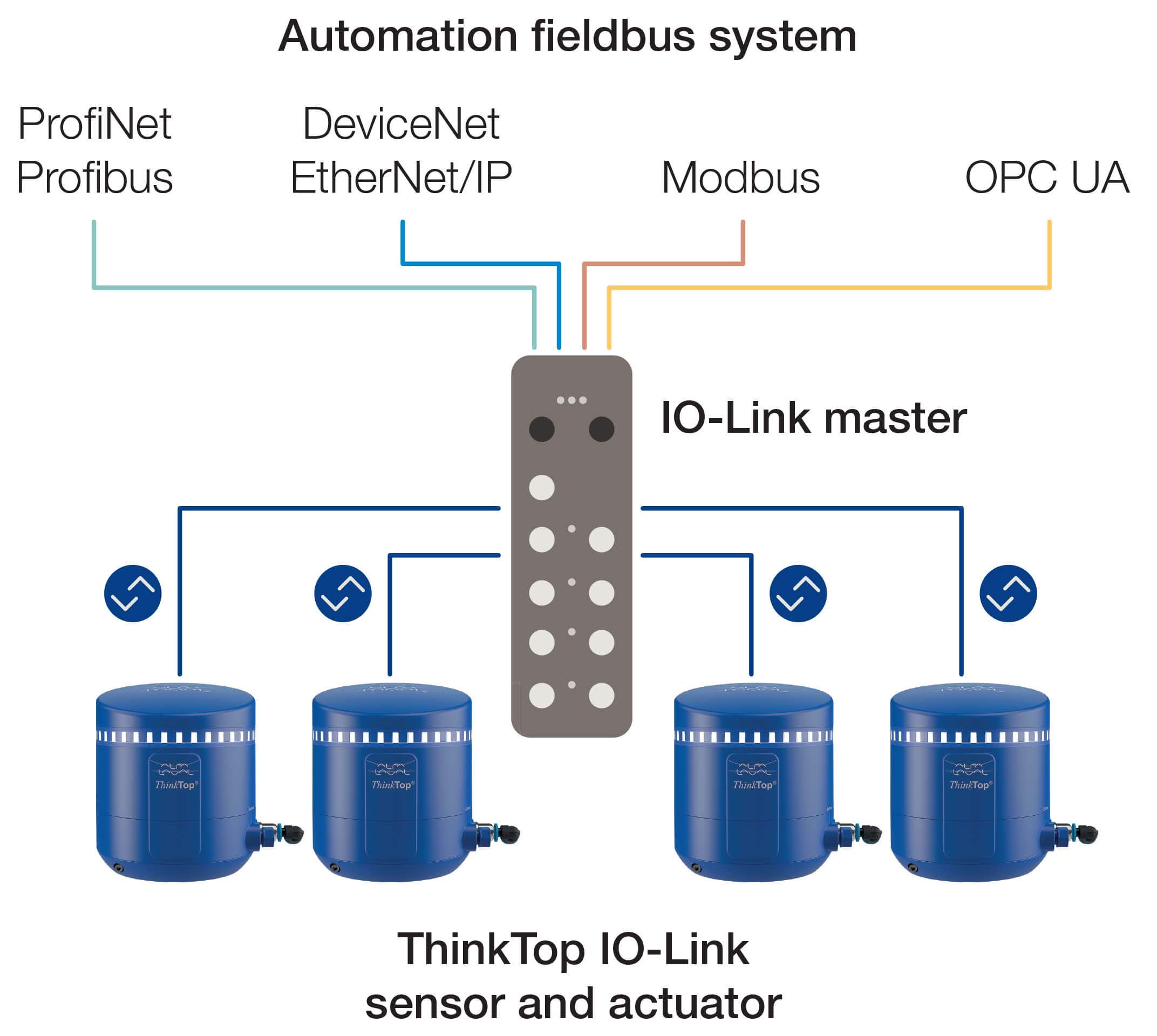

Demand more from your valves with the Alfa Laval ThinkTop IO-Link. The ThinkTop IO-Link enhances communication between your hygienic valves and Industry 4.0 automation systems. The point-to-point IO-Link communication protocol connects sensors and actuators, regardless of fieldbus, to your automation systems. This makes meaningful real-time data easier to capture, store, analyze and act upon.
- Enhanced flexibility which lets you change data parameters and process data from a remote automation system
- More uptime and less cost due to 24/7 data monitoring and diagnostics
- Comprehensive overview of data for timely preventative maintenance and optimized performance
- Clearly visible LEDs with customizable colours and a 'wink' function that makes it easier to locate a valve from the factory floor
How it works
How it works
The Alfa Laval ThinkTop V50 valve control unit offers a single sensor solution for Diaphragm valves, Butterfly valves and Single seat valves and it can be fitted with 0 or 1 solenoid valves. The ThinkTop valve control unit converts the electrical PLC output signals into mechanical energy to energize or de-energize the air-operated valve, using the physical sensor target mounted on the valve stem.
Experience a seamless and speedy installation process with the Alfa Laval ThinkTop valve control unit's auto setup feature. To begin, just press the "Select" button, followed by the "Enter" button, and the setup sequence will initiate automatically. The process adapts according to the number of solenoid valves connected to the control unit. Additionally, if needed, you can perform a "Live setup" without disassembling the control head, enabling convenient remote configuration.
Burst seat clean: sustainable water savings for mixproof valve cleaning systems
Save up to 90% of the Cleaning-in-Place (CIP) liquid used for mixproof valve cleaning with the Alfa Laval ThinkTop burst seat clean. Unlike conventional PLC timer-based seat lift cleaning, burst seat cleaning uses minimal water and cleaning media. In less than a second, high-impact bursts of CIP liquid effectively clean your mixproof valves, removing all residuals from seat surfaces and safeguarding process hygiene.
Pulse seat clean: cut CIP liquid consumption on drain valve cleaning by up to 95%
Drain valves comprise 20% of all valves in typical process plants. Imagine the water savings you can realize by adding the Alfa Laval ThinkTop pulse seat clean to your drain valve cleaning process.
In less than a second, an intensive jet of CIP liquid pulses through the gap between the valve house and valve seat, creating high turbulent flow and leaving the valve spotless. The result? Quick and effective cleaning, more uptime, and increased end-product yields.
Discover a new generation of ThinkTop® valve control units
Want to learn how the evolutionary Alfa Laval ThinkTop V50 and V70 can improve production on your hygienic process lines? Faster and more intuitive. Smart and adaptable. Durable and reliable. More compact yet with a highly functional design. The Alfa Laval ThinkTop. Rethought.
Cut Clean-in-Place liquid costs by 90% with optimized valve cleaning process
Are you interested to reduce consumption of CIP liquids? In this article, learn more about how you can achieve substantial water savings during the valve cleaning process – without compromising on product hygiene and safety.
