AC

Built with Alfa Laval’s flexible DynaStatic distribution system, which our experts optimize according to your specific application and choice of refrigerant, our AC line of heat exchangers offers top thermal performance in evaporation duties. Combined with the unique FlexFlow asymmetric channel plates, you get the maximum possible efficiency for your system.

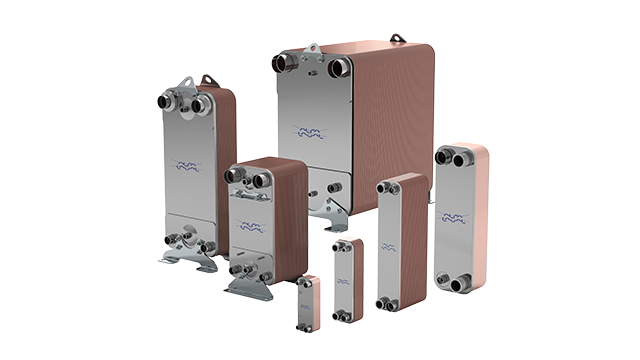

al bhe ac right

Buy from market leader to ensure superior performance and longevity

  • As evaporators, AC units handle capacities ranging anywhere from 5 to 1000 kw
  • Available for design pressures ranging from 32 to 60 bar, with the same compact footprint and no need for bigger frames or bolts
  • Thanks to high pressure resistance, an AC unit with distributor can also work as a condenser in reversible systems
  • All heat exchangers individually pressure and leak tested
  • Buy online with a credit card in the Alfa Laval Web Shop
With the integrated but flexible DynaStatic distribution system, Alfa Laval AC brazed heat exchangers can provide high performance in evaporation and condensing duties. In many cases, this performance can be 20-40% greater than comparable heat exchangers without a distribution system. This offers big advantages both for reversible systems and when defrosting is key to the application. Alfa Laval has specially engineered the AC line for air conditioning/refrigeration chiller applications and heat pump applications. Common duties include dry expansion evaporators for cooling water or glycol, condensers for rejecting or recovering heat to water, economizers, subcoolers, and desuperheaters.
.

New heat exchanger webshop

Alfa Laval is proud to introduce online shopping for brazed plate heat exchangers in Australia. Size and buy the right product for your cooling and heating applications online. Free express shipping. Live chat with Alfa Laval engineers.

Al-vignette-Webshop-640x360

How it works

The Alfa Laval Alfa Chill or AC product line is developed for the refrigeration market and two-phase applications. The Alfa Laval AC brazed plate heat exchanger range includes around 35 products in different sizes and design pressures. AC brazed plate heat exchangers support a wide variety of HFC refrigerants such as our 404 a r134a and CO2. The AC product line is supplied with distribution systems which optimized the evaporator performance. For some of the Alfa Laval AC models we have asymmetric for better utilization of the allowed pressure drop on both sides. This means that the channel volumes are different for the cold and hot sides. This allows you to optimize the heat transfer and thereby minimize the number of Channel plates in the unit. Asymmetric plates are normally combined with a symmetric H or L plate. Alfa Laval brazed plate heat exchangers can be supplied with a variety of accessories and extras.

What is a brazed plate heat exchanger

A brazed plate heat exchanger is a type of plate heat exchanger used to transfer heat between two liquids. Brazed plate heat exchangers are significantly smaller than gasketed plate heat exchangers. As the plates connect directly, the brazing technology eliminates the need for seals and thick frame plates. Often brazed plate heat exchangers are covered in a copper film, making them ideally suited for HVAC and refrigeration duties due to the copper's high thermal conductivity, resistance to atmospheric and water corrosion, sealing and joining by soldering, and mechanical strength.

One of the differentiators for Alfa Laval as a brazed plate heat exchanger manufacturer is its patented asymmetrical plate design. The unique design feature translates to higher thermal efficiency and lower energy consumption, thanks to optimized pressure drop and increased turbulence.

With the DynaStatic distribution system, AC model brazed plate heat exchangers are engineered to give the optimal fit for their intended application. The system is generally designed to provide countercurrent media flow but can also be configured for co-current flows.

View the animation to learn more.



How to size brazed plate heat exchanger

 Alfa Laval brazed plate heat exchangers can be configured as one-, two- or multi-pass versions with a wide range of connection designs and locations.  Selecting the correct plate patterns for each plate size means optimal function for any application. Every brazed heat exchanger has a name, the name tells us information about the heat exchanger. The name is constructed as follows:

Product family, Pressure, Capacity, Number of plates, Channel type

  • Example: CB30-14H: CB = product family, Standard pressure = no letter, 30 = Capacity, 14 = Number of plates, H = Channel type

Alfa Laval’s product range of brazed plate heat exchangers covers temperatures of maximum 225 degree Celsius. The max design pressure is as follows. Note that maximum design temperature and maximum design pressure are dependent on each other.

Alfa Laval’s range includes all sizes, NTU and ports ranging from 15 mm to 120 mm different channel plates, asymmetric plates and different pressure range to secure we have a perfect fit for all kind of duties.

All Alfa Laval brazed plate heat exchangers can be offered with different connections to make the installation at the customer site easy. When Alfa Laval releases new models we secure that the c-c measurements between the connections are the same for the new models as the old to secure easy upgrade to the new model. You find manuals and 3D drawings for Alfa Laval heat exchangers on the Productguide.

Live chat with our heat exchanger experts

Looking for the right heat exchanger can be a complex task. Live chat with our local engineers to get expert advice on the best technology for your applications, as well as sizing and pricing information. Simply click on the blue chat icon at the bottom right corner of the page to contact our agents. Available Monday to Friday. We look forward to hearing from you!

man computer service and training 640x360

Unique features to boost your performance

With more than 80 years of experience in heat transfer innovation, Alfa Laval knows what it takes to deliver high-performance solutions for any application. Our experts continuously develop new innovations that give our AC line of brazed plate heat exchangers more reliable and efficient performance.

DynaStatic

Flexible refrigerant distribution

This breakthrough production method lets you fully tailor the placement, size and number of inlets to fit your specific application, ensuring the optimal refrigerant distribution system for your products. The result is higher efficiency with the flexibility to use low-GWP refrigerants.

PressureSecure icon

PressureSecure

Unparalleled strength for demanding duties

Our innovative plate designs support the widest range of high-temperature and high-pressure applications. Units can run using thinner plates and fewer plates, which translates to less raw material, lower energy consumption, reduced refrigerant charge and a longer equipment lifecycle.



Flex flow icon

FlexFlow™

Superior thermal performance

Alfa Laval’s patented asymmetrical plate design is one of many unique innovations that gives you improved thermal efficiency thanks to optimized pressure drop and increased turbulence. In addition to cutting energy consumption, that means reducing refrigerant volumes and raw materials.

IceSafe

Controlled, non-destructive freezing

For applications that require it, we can supply plate heat exchangers designed to allow ice crystals to form under certain operating conditions, but displaced from sensitive areas. This ensures both reliable performance and a long product life.

REF futurure icon

REFuture

A future-proof investment for tomorrow’s refrigerants

As an innovative driver in the development of solutions for natural refrigerants, Alfa Laval brings years of experience working with products that enable the use of new-generation and low-GWP refrigerants to help you meet sustainability goals and any legislative requirements.

Key applications

Air conditioning and chillers

As the name suggests, the AC line is an optimal choice for air conditioning and refrigeration chiller applications.

brazed air conditioning640x360

Heat pumps

Alfa Laval brazed heat exchangers can be used as condensers, economizers, evaporators and more.

brazed heat pumps640x360
